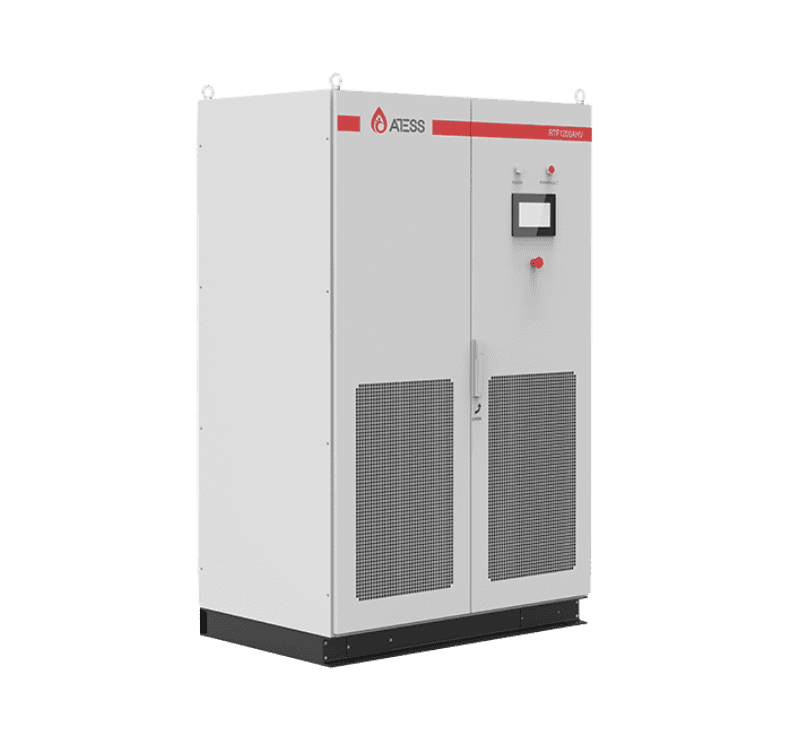

⚡ ATESS RTF1200AHV – High-Voltage Industrial Rectifier 1.2 MW (DC-Coupling for Large-Scale Projects)
ATESS RTF1200AHV is a high-voltage AC-DC rectifier cabinet with a nominal capacity of 1.2 MW, purpose-built for factories, large-scale energy-storage/EV-charging sites, and government projects. It delivers high efficiency, advanced industrial control, and seamless integration with PCS and DC-bus architectures.
⚙️ Technical Specifications
- 🔠 Model/Designation: RTF1200AHV.
- 🏷️ Device type: Industrial AC-DC rectifier for PCS and DC-coupled systems.
- ✅ Certifications: CE.
🔌 AC Side
- ⚡ Rated power: 1200 kW.
- 🔋 Rated voltage: 400 Vac, three-phase.
- 🔢 Rated current: 1732 A (approx.).
- 🔀 Voltage range: 360–440 Vac.
- ⏱️ Frequency: 50 Hz (±10%).
- 📐 Power factor (PF): ≥ 0.98.
- 🧮 Current THDi: ≤ 5%.
- 🎯 Efficiency: ≥ 95%.
🔋 DC Side
- 🔌 Output voltage range: 200–950 Vdc (full power above 500 V; derating below 500 V).
- 🔢 Max output current: 2400 A (approx.).
- 🌊 Current ripple: ≤ 1%.
- 🎛️ Voltage accuracy: ≤ 0.5%.
- 🎛️ Current accuracy: ≤ 1%.
🧠 Control & Communications
- 🖥️ HMI: Color touch screen.
- 🛰️ Interfaces/Protocols: RS485 / CAN.
- 🔁 Parallel operation: Supports multi-cabinet expansion to increase capacity as required.
🏗️ Mechanical & Environmental
- 🔇 Noise level: ≤ 68 dB(A) @ 1 m.
- ❄️🌡️ Operating temperature: −40 °C to +45 °C (full load), +45 °C to +55 °C (half load).
- 📦 Storage temperature: −40 °C to +85 °C.
- 💧 Humidity: 0–95% non-condensing.
- ⛰️ Altitude: < 2000 m.
- 🌀 Cooling: Forced-air.
- 📏 Dimensions (W×H×D): 1204 × 1958 × 853 mm (single cabinet).
- ⚖️ Approx. weight: 700 kg (for the nominal-capacity assembly).
- 🛡️ Ingress/installation: Industrial indoor use; enclosure, filters, and guards can be tailored to site conditions.
🧵 Cabling Requirements
- 🔌 AC supply: Outdoor UV-resistant cables with cross-sections suitable for high currents (verify breakers and busbars for 1.2 MW rating).
- 🔗 RS485 link: Shielded twisted pair (STP), 0.75–1.5 mm².
- 🌐 SCADA/Ethernet (via PCS): Shielded CAT5/6.
- 🎚️ AI/DI signals (if used): ~0.75 mm²; OD per panel terminal specs.
🌍 Why RTF1200AHV Fits the Middle East and GCC?
- 🌦️ Strong environmental tolerance: Operates from −40 °C up to +55 °C (half-load), suitable for dust, salinity, and high heat.
- 🧩 Flexible expansion: Modular, parallel architecture for scalable capacity and simplified O&M.
- 🔧 DC-Coupled integration: AC-DC front-end with PCS to reduce conversion losses and boost efficiency in storage/charging sites.
- 🛠️ Lower OPEX: Touchscreen HMI and industrial buses (RS485/CAN) for fast integration into site control systems.
🏭 Application Scenarios
- 🏭 Heavy industry and large EV-charging depots using DC-bus architectures.
- 🏢 Energy-storage stations and hybrid PV+Battery+PCS plants.
- ☀️ Government and commercial projects across Saudi Arabia, UAE, Oman, Qatar, Bahrain, Kuwait, and Yemen.
- 🔌 Capacity upgrades at existing facilities by adding parallel cabinets without full re-engineering.
❓ FAQs
How should I set DC voltage/current set-points?
🔸 The 200–950 Vdc range delivers full power above 500 Vdc; if operating below 500 Vdc, apply an appropriate derating margin.
What AC current should be provisioned?
🔸 The nominal current is ~1732 A at 400 Vac three-phase—select breakers, busbars, and cabling to match this rating.
Is outdoor installation possible?
🔸 Prefer installation in electrical rooms/containers with forced-air cooling and protection against dust/moisture; the enclosure can be customized for site conditions.
Does it integrate with PCS and SCADA?
🔸 Yes—operates as an AC-DC rectifier within DC-coupled architectures alongside PCS, communicating via RS485/CAN per the site’s control design.
